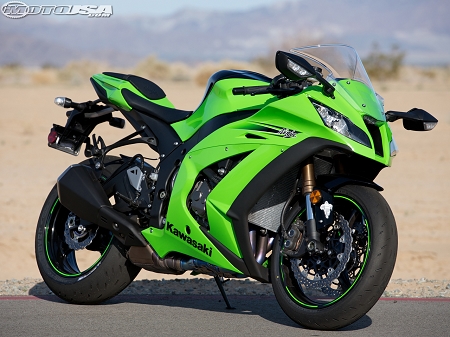

The Kawasaki ZX-10R 2011-15 Is a Confirmed Convertibars application.
Great fit with nice adjustablity but WINDSCREEN REQUIRES MODIFICATION OR REPLACEMENT!
*Maximum ConvertiBARS positioning capability.
Measurements are in inches, relative to the stock position, and with Proper Length Lines Position restrictions between low and high positions do exist. Measurements calculated with default handlebar below. See Bottom of page for rise capability with stock lines Fore = Further from the rider, Aft = Closer to the rider.
| Vertical | Horizontal | ||
| Below | Above | Fore | Aft |
| 0 | 3.5 | 1.5 | 2 - ?? |
Important Installation Considerations.

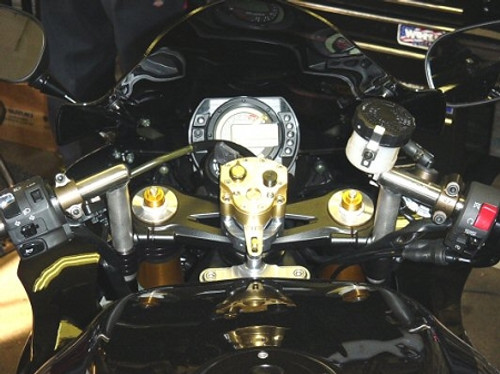

More rise can be achieved if fairing is trimmed or replaced. Pictured bike has Zero Gravity Touring screen.
*Max Rise allowed with stock lines.
| Stock Hydraulic Brake Line | 3.5 |
| Stock Hydraulic Clutch Line | 3.5 |
| Stock Throttle Line | 3.5 |
| Stock Electrical Lines | 3.5 |
*ConvertiBARS travel relative to the stock location; measurements are in inches.
